Pulverization Process Examples

Machinery & Equipment

Metals
Ceramics
Plastics
Food and medical
Other

Metals

Silver powder

Raw material

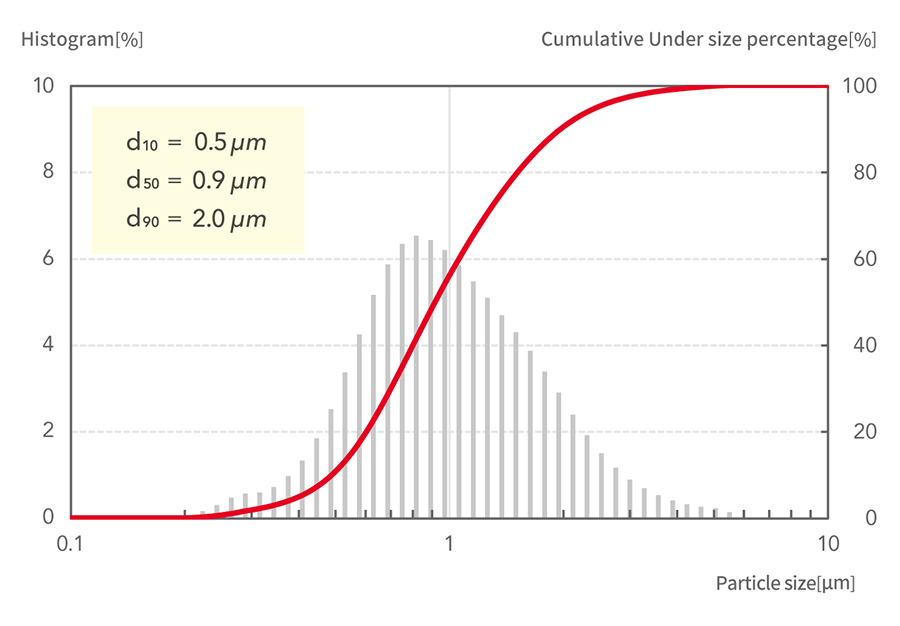

d10=0.5μm, d50=0.9μm, d90=2.0μm

Product

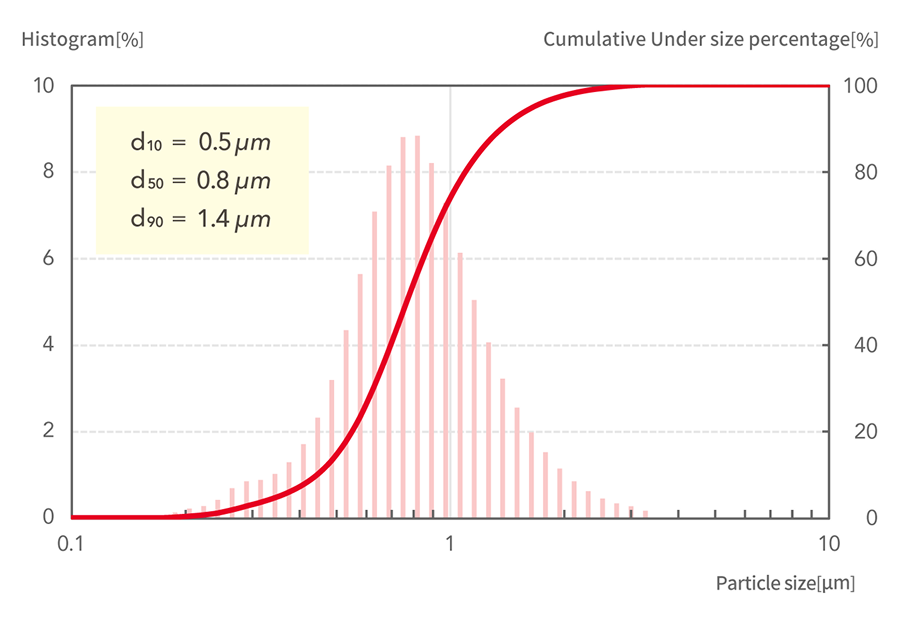

d10=0.5μm, d50=0.8μm, d90=1.4μm

Related Products

Nickel powder

Raw material

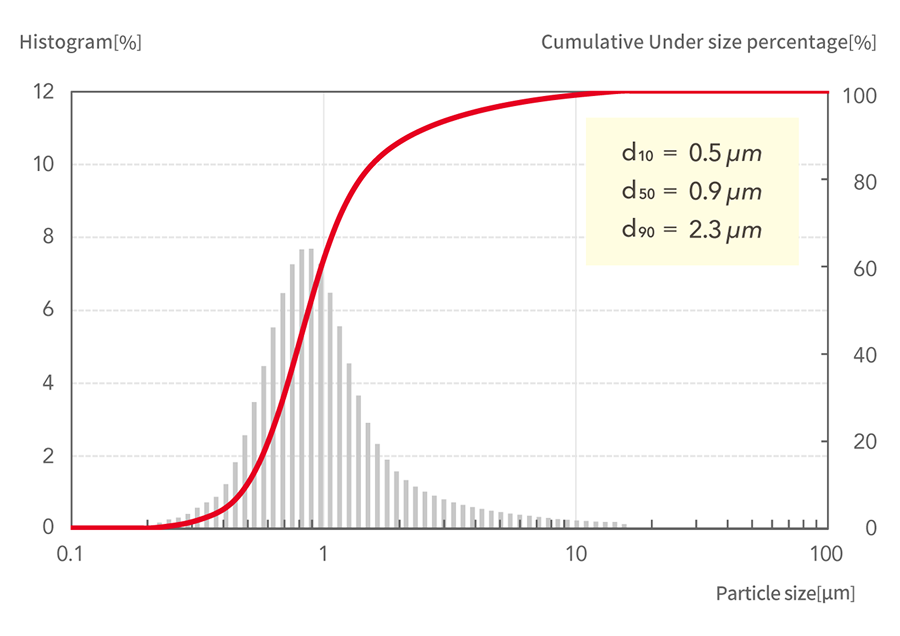

d10=0.5μm, d50=0.9μm, d90=2.3μm

Product

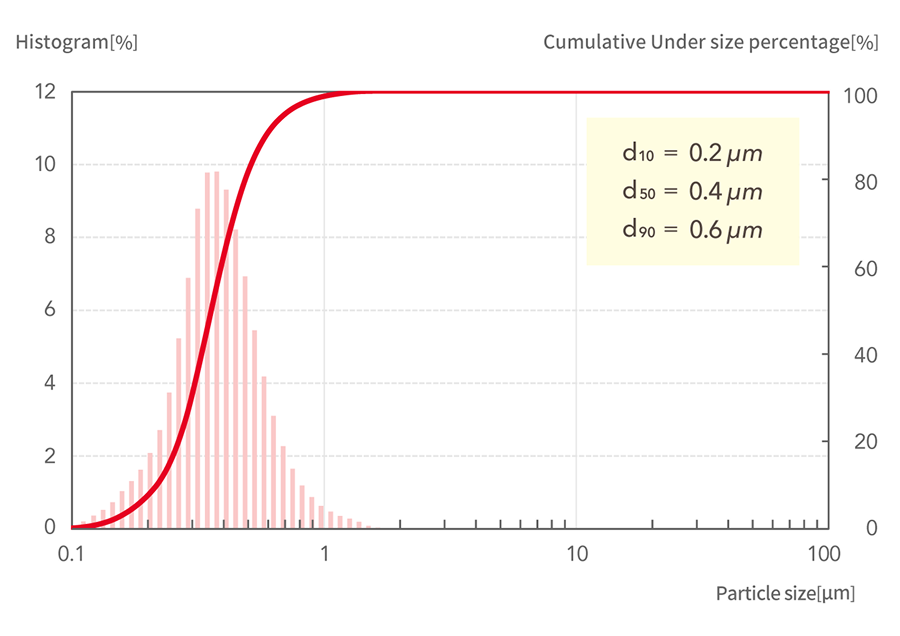

d10=0.2μm, d50=0.4μm, d90=0.6μm

Related Products

Metal silicon powder

Raw material

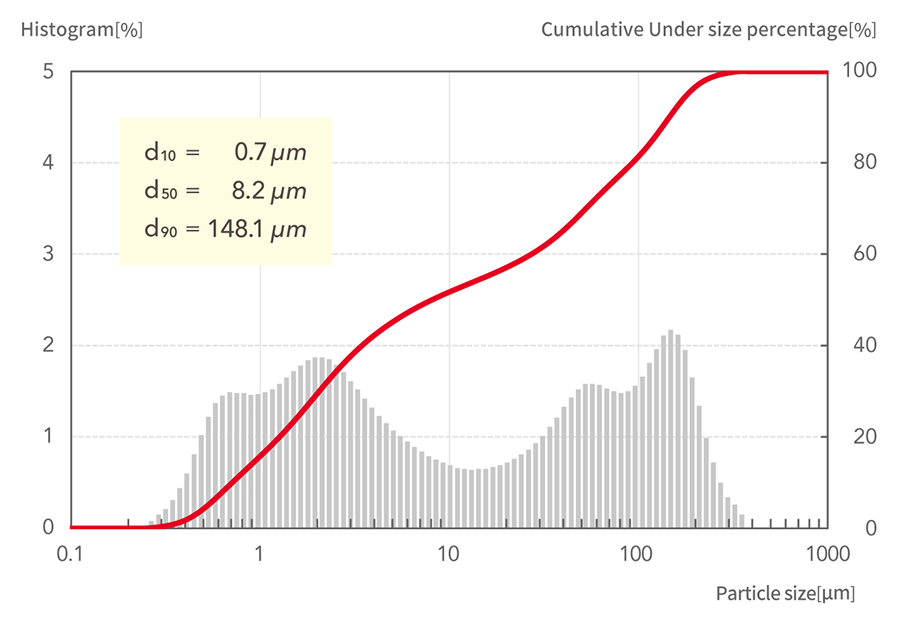

d10=0.7μm, d50=8.2μm, d90=148.1μm

Product

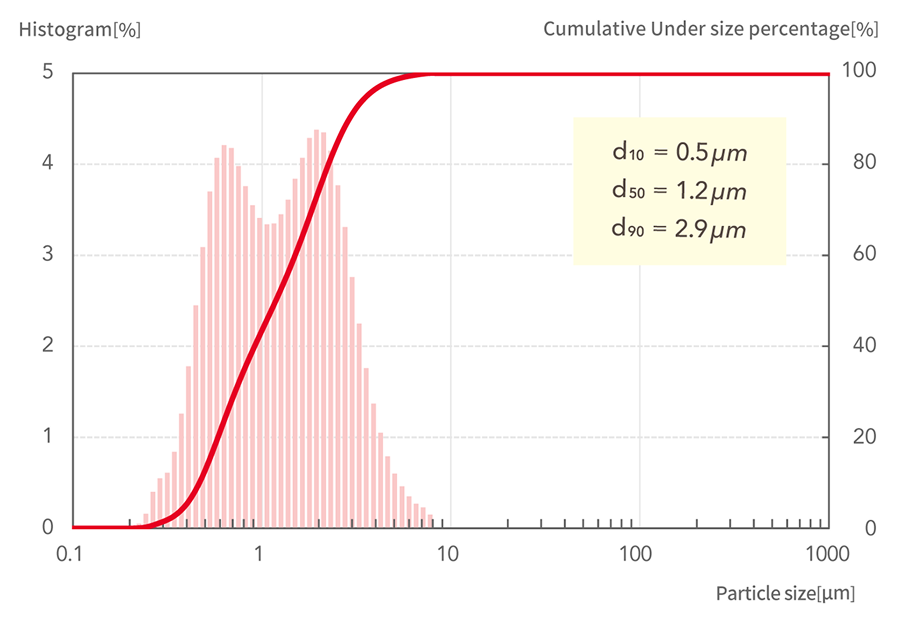

d10=0.5μm, d50=1.2μm, d90=2.9μm

Related Products

Ceramics

Silica

Raw material

1,000x 10.0μm WD: 8.0mm 5kV 2006/10/18 09:59:22 S

Product

1,000x 10.0μm WD: 8.0mm 5kV 2006/10/18 10:32:59 S

Related Products

Alumina

Raw material

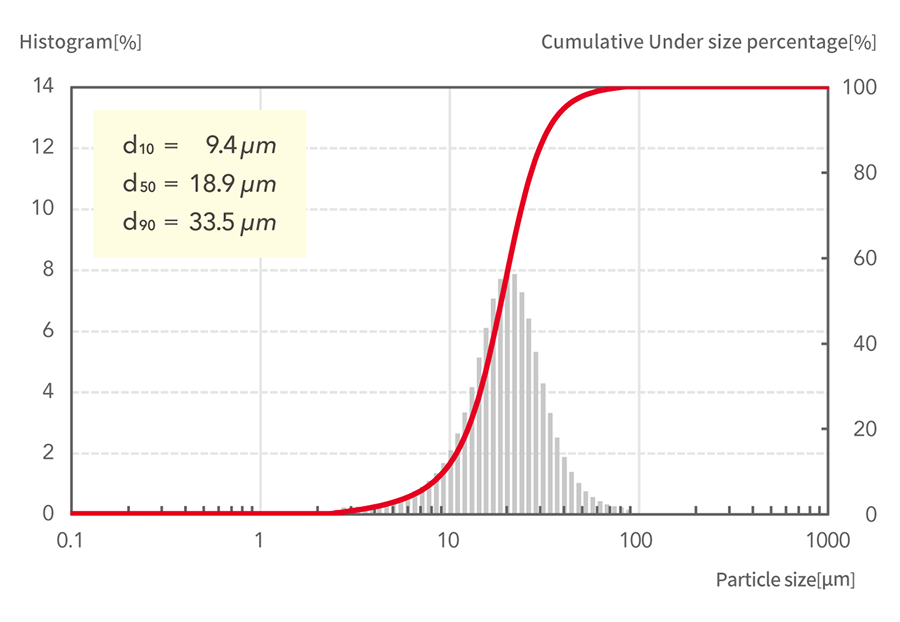

d10=9.4μm, d50=18.9μm, d90=33.5μm

Product

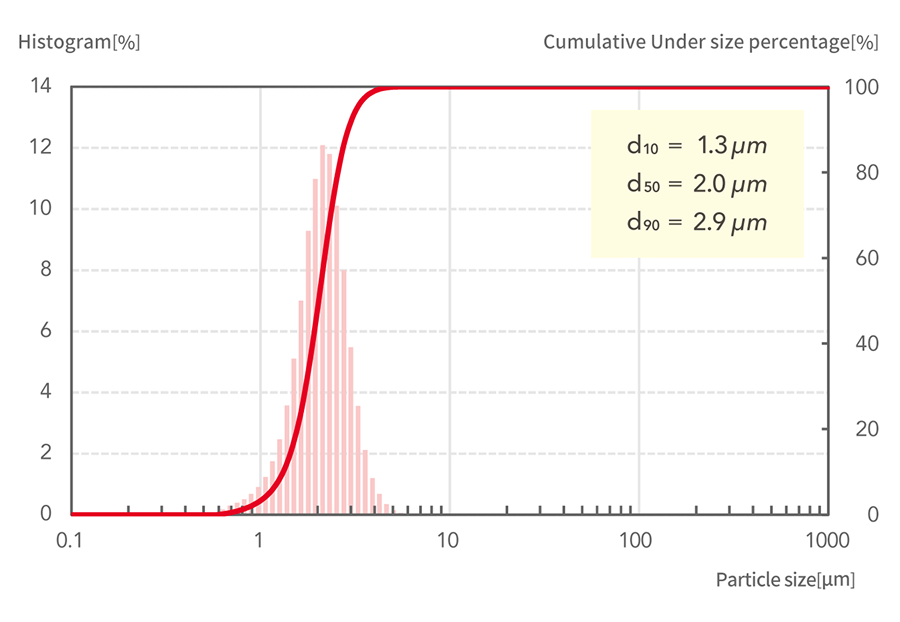

d10=1.3μm, d50=2.0μm, d90=2.9μm

Related Products

Yttrium oxide

Raw material

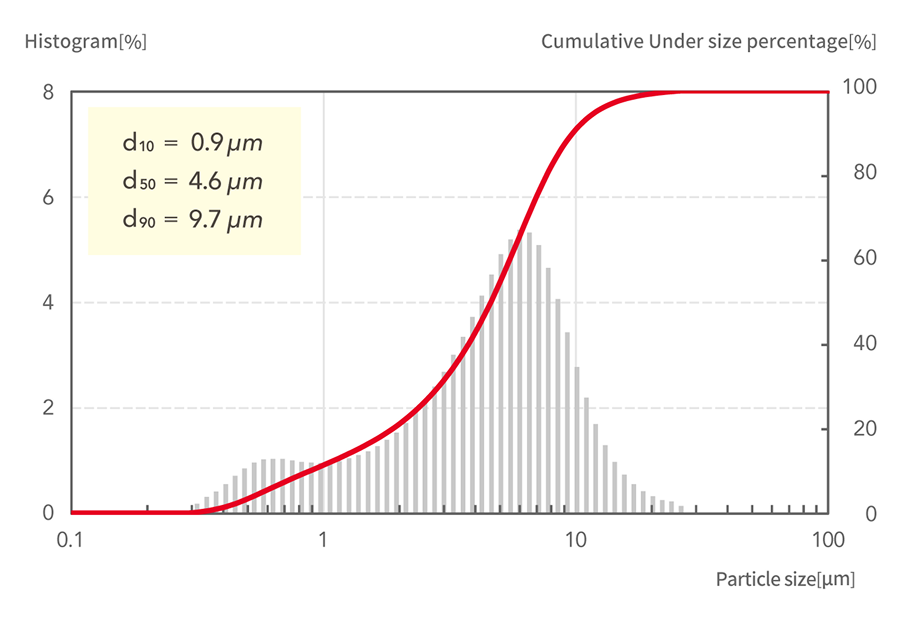

d10=0.9μm, d50=4.6μm, d90=9.7μm

Product

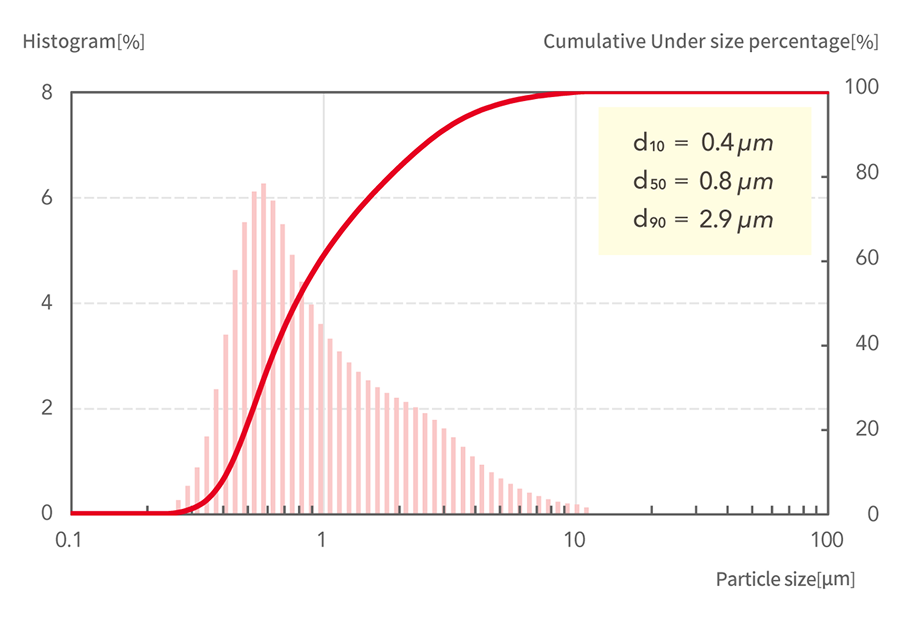

d10=0.4μm, d50=0.8μm, d90=2.9μm

Related Products

Plastics

Polymer 1

Raw material

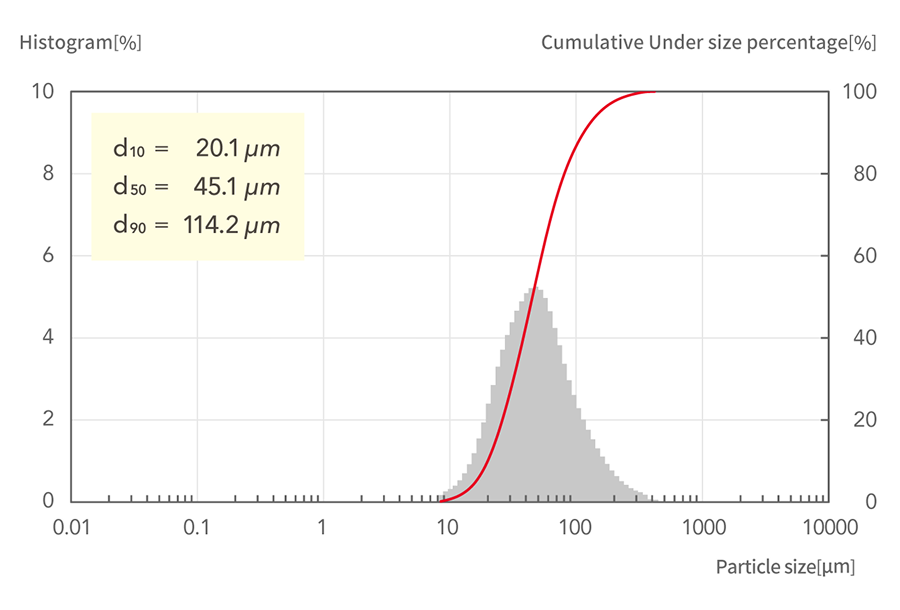

d10=20.1μm, d50=45.1μm, d90=114.2μm

Product

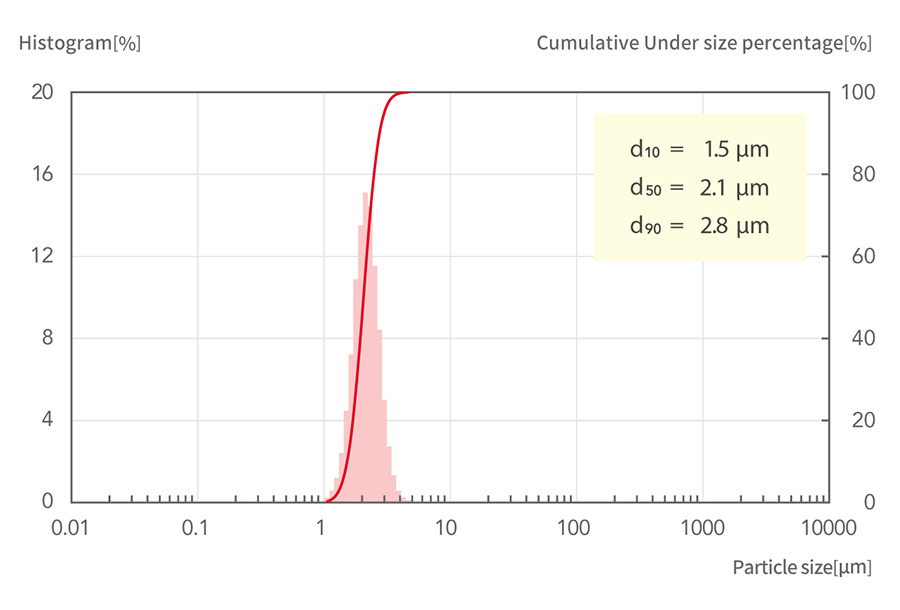

d10=1.5μm, d50=2.1μm, d90=2.8μm

Related Products

Polymer 2

Raw material

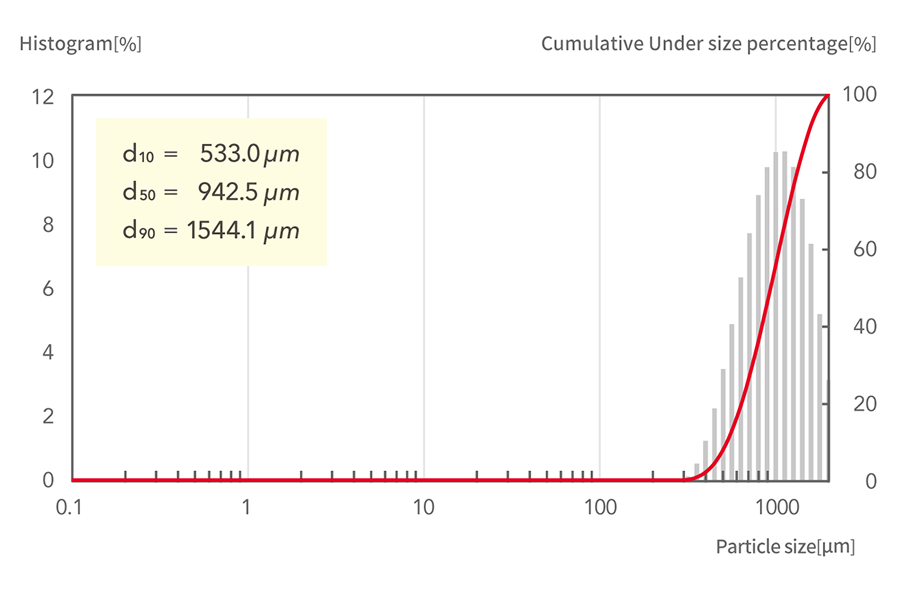

d10=533.0μm, d50=942.5μm, d90=1544.1μm

Product

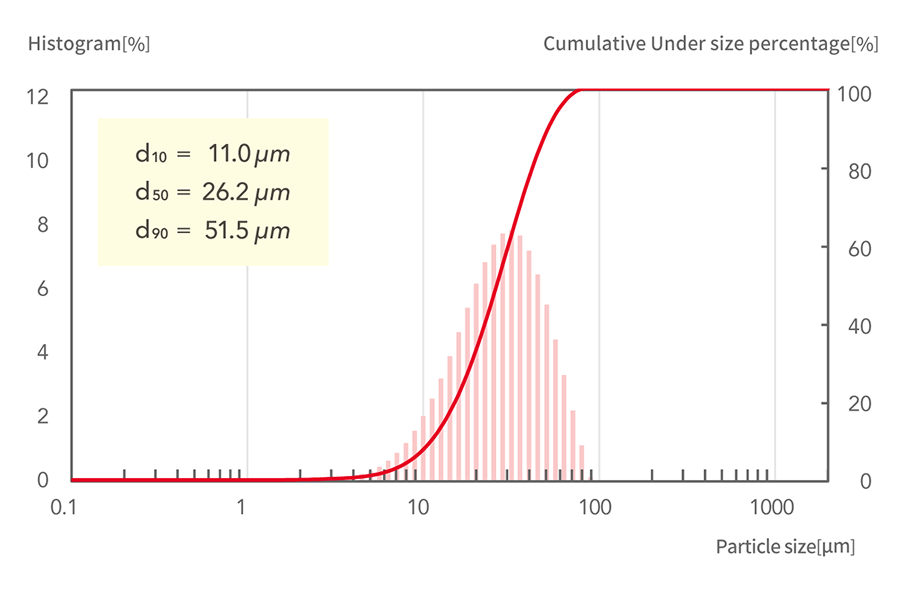

d10=11.0μm, d50=26.2μm, d90=51.5μm

Related Products

Toner

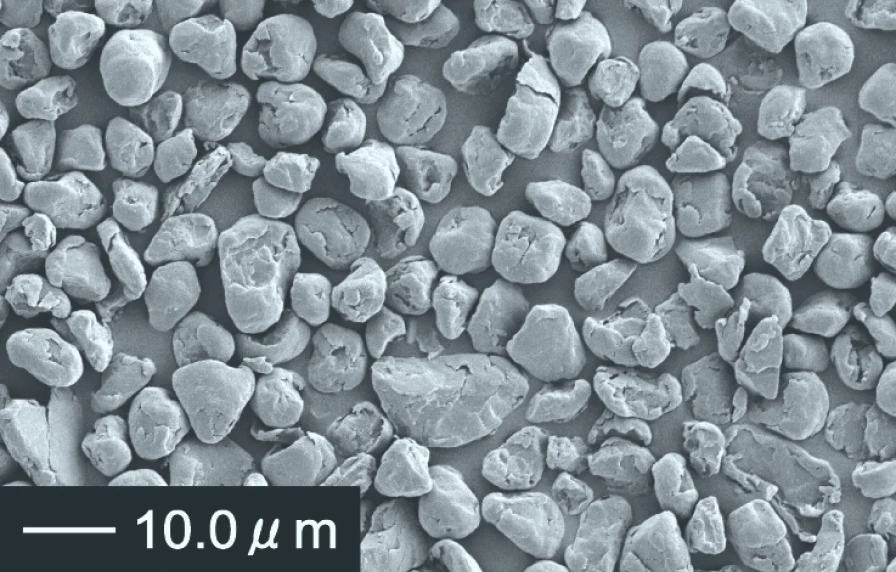

Product

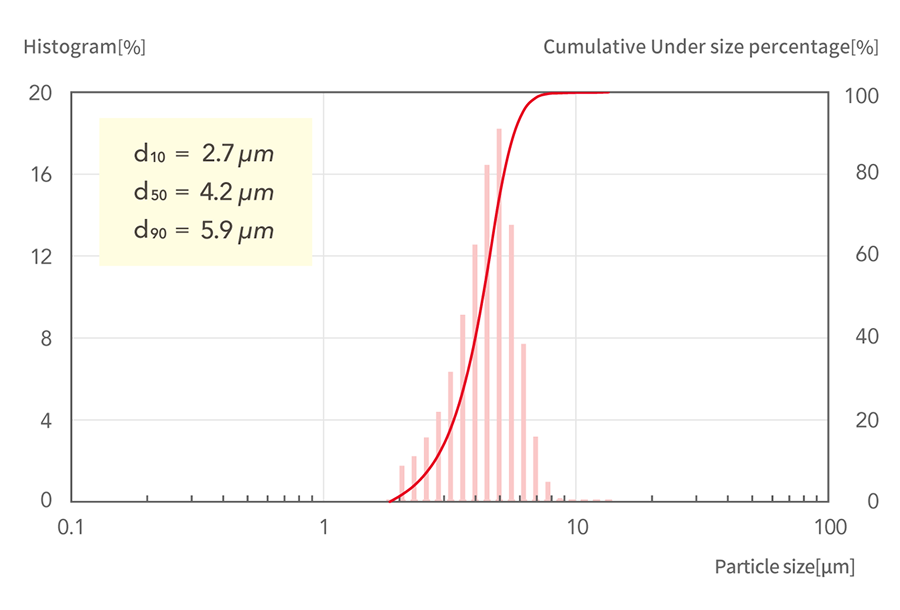

d10=2.7μm, d50=4.2μm, d90=5.9μm

Related Products

Food and medical

Powdered green tea

Raw material

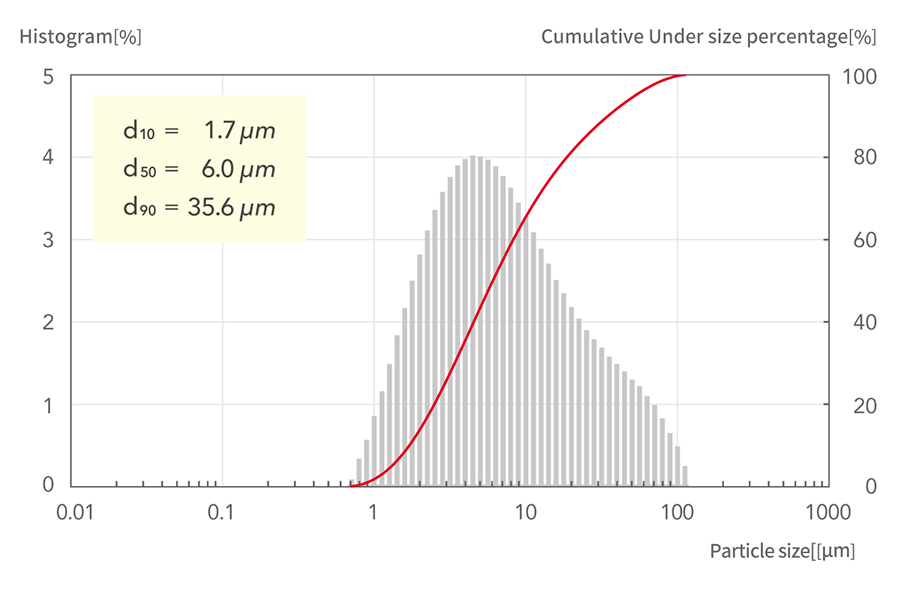

d10=1.7μm, d50=6.0μm, d90=35.6μm

Product

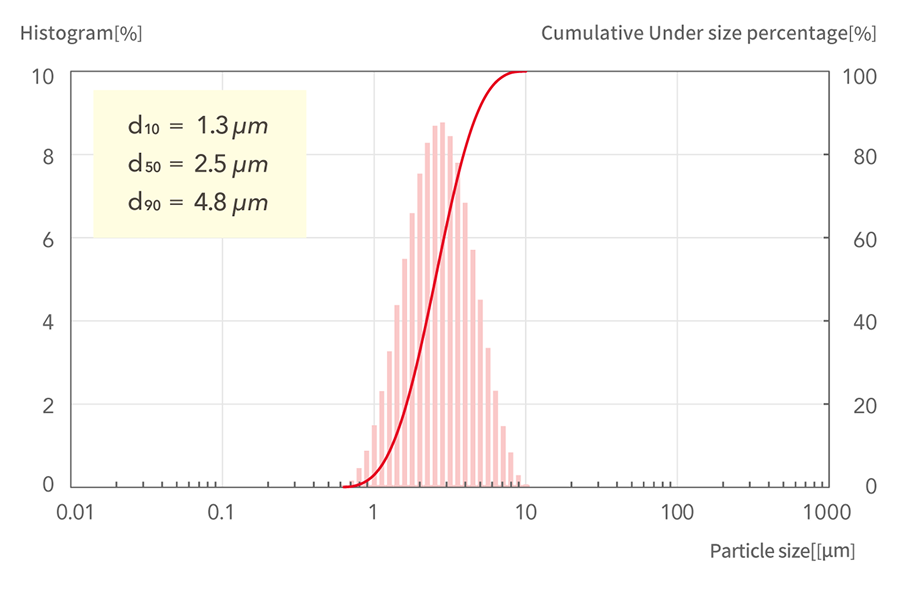

d10=1.3μm, d50=2.5μm, d90=4.8μm

Related Products

Matcha

Raw material

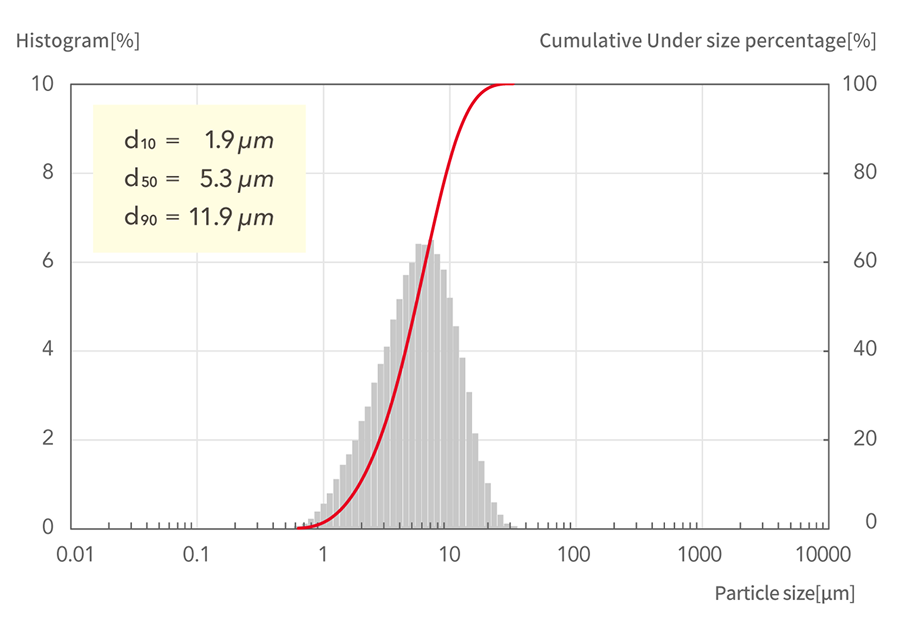

d10=1.9μm, d50=5.3μm, d90=11.9μm

Product

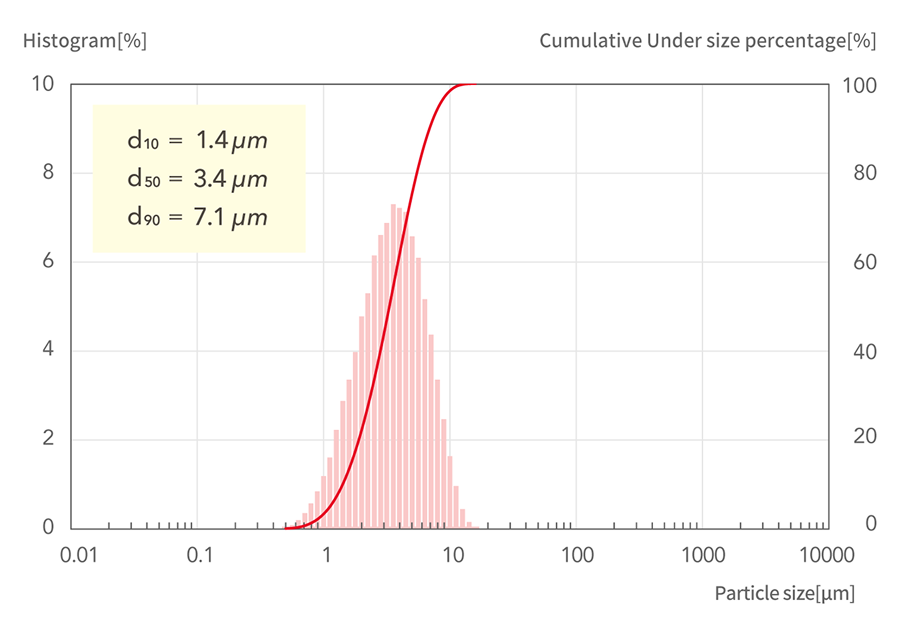

d10=1.4μm, d50=3.4μm, d90=7.1μm

Related Products

Active Pharmaceutical Ingredient

Raw material

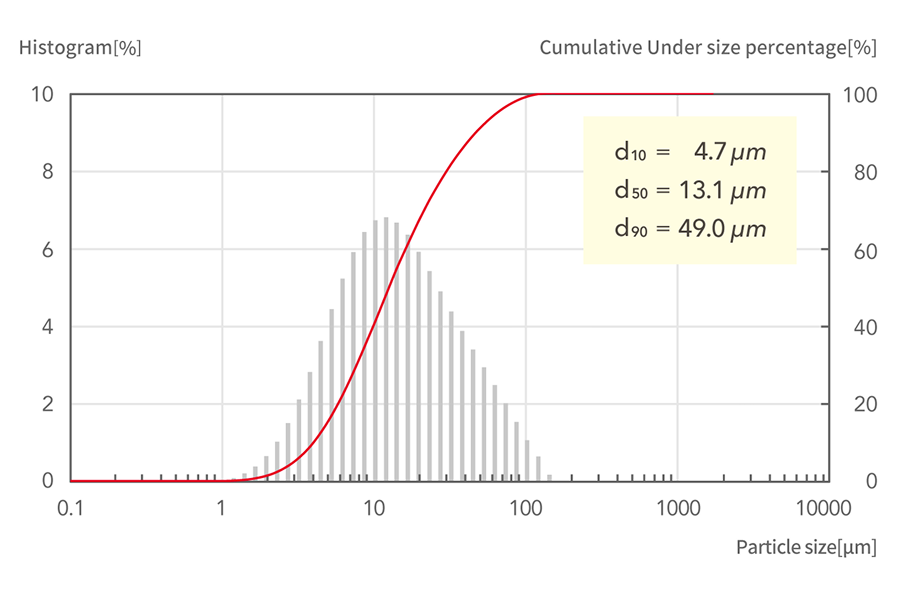

d10=4.7μm, d50=13.1μm, d90=49.0μm

Product

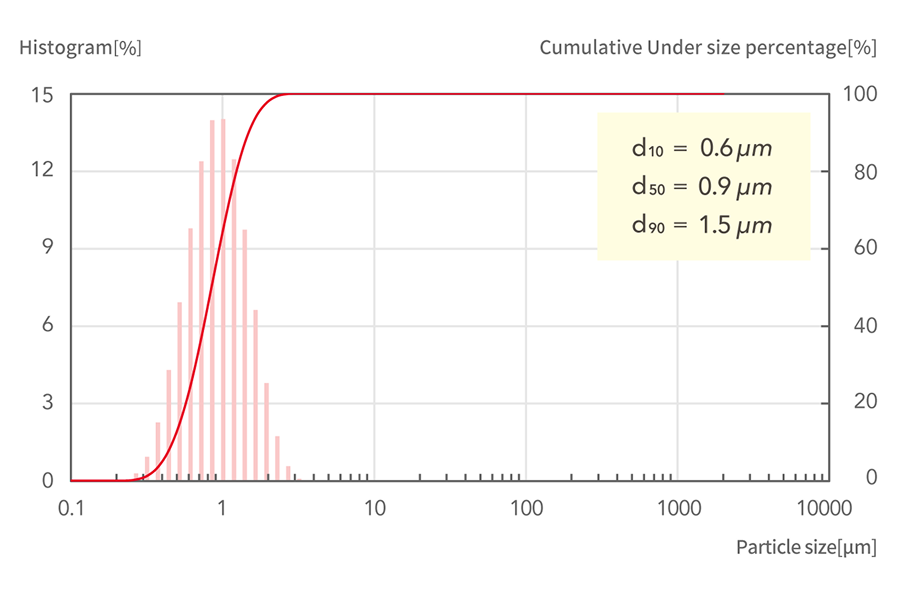

d10=0.6μm, d50=0.9μm, d90=1.5μm

Related Products

Other

Lithium iron phosphate

Raw material

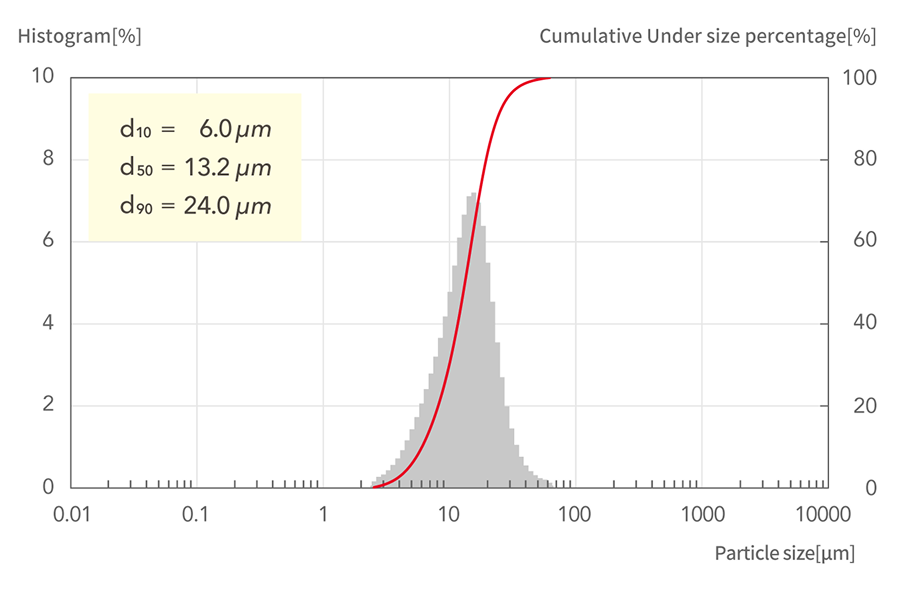

d10=6.0μm, d50=13.2μm, d90=24.0μm

Product

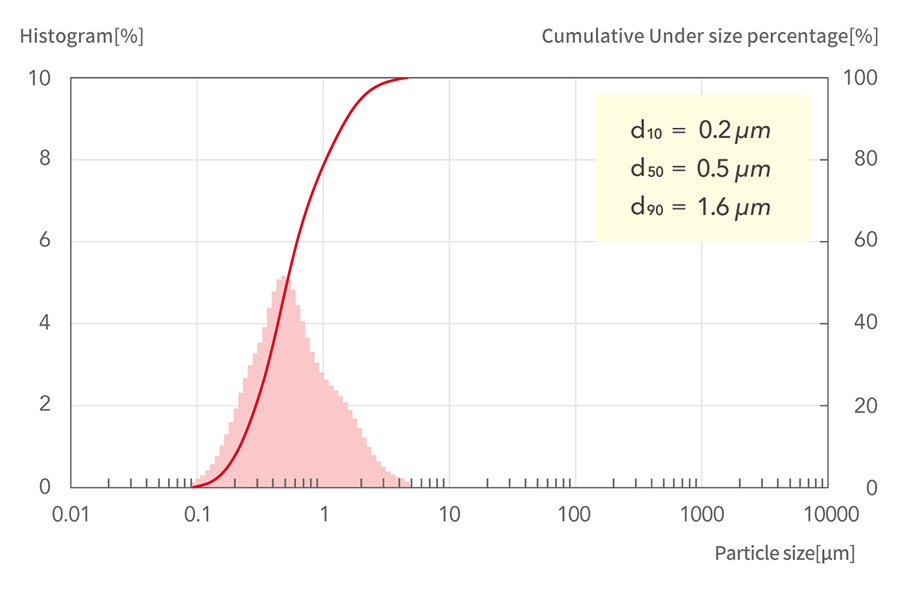

d10=0.2μm, d50=0.5μm, d90=1.6μm

Related Products

Glass

Raw material

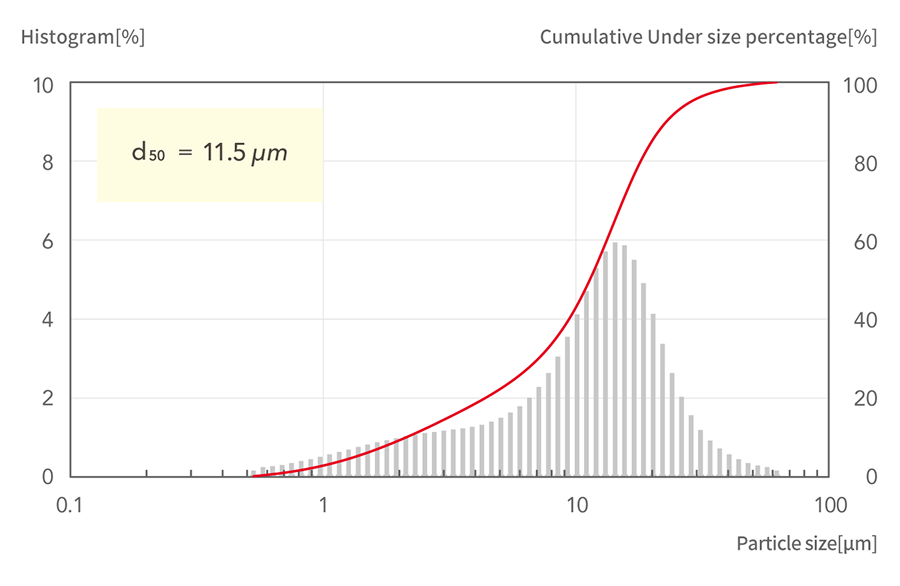

d50=11.5μm

Product

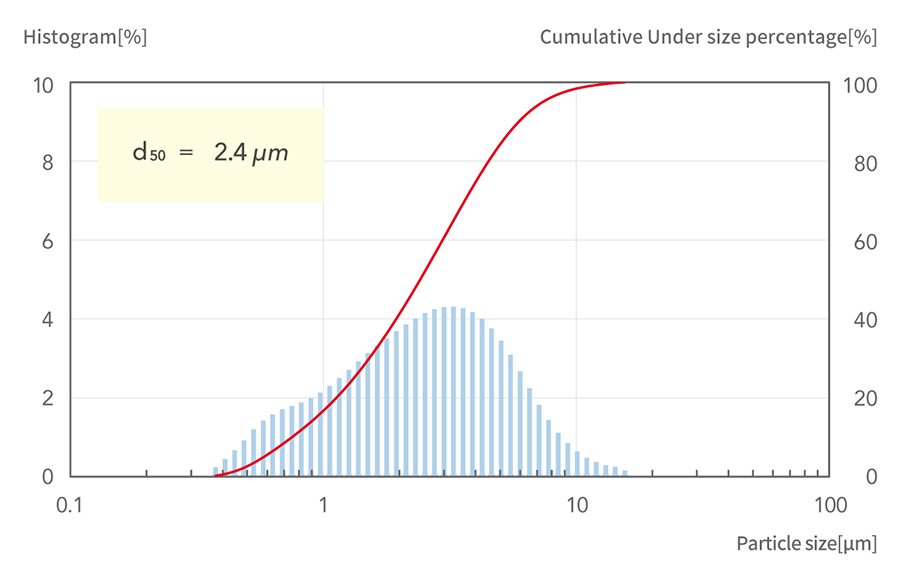

d50=2.4μm

Milling

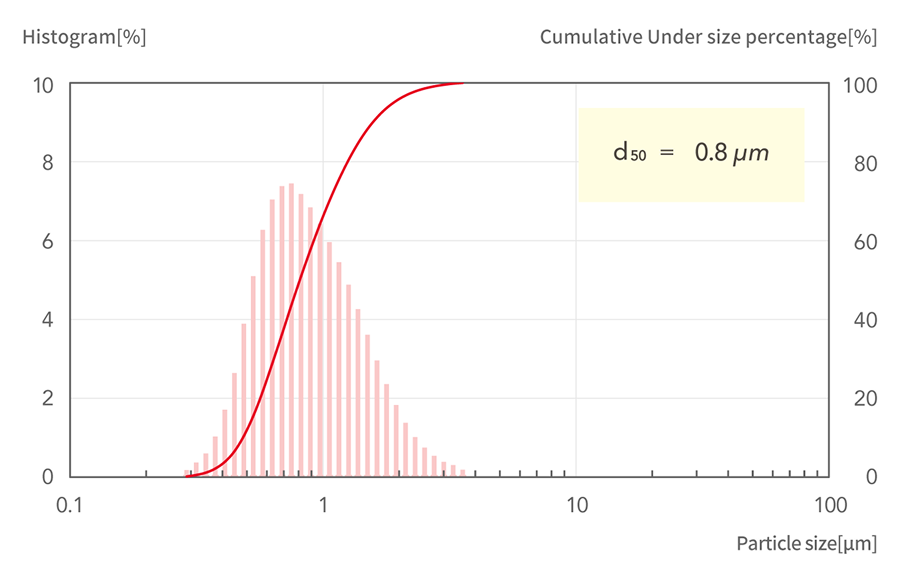

d50=0.8μm

Milling + Classification

Related Products

Super Jet Mill Aerofine Classifier

Glass frit

Raw material

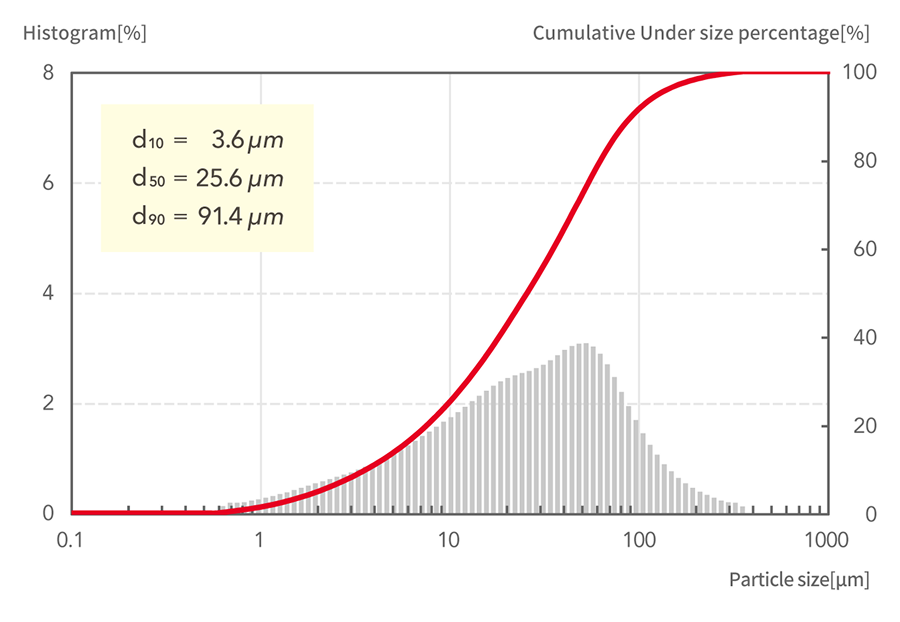

d10=3.6μm, d50=25.6μm, d90=91.4μm

Product

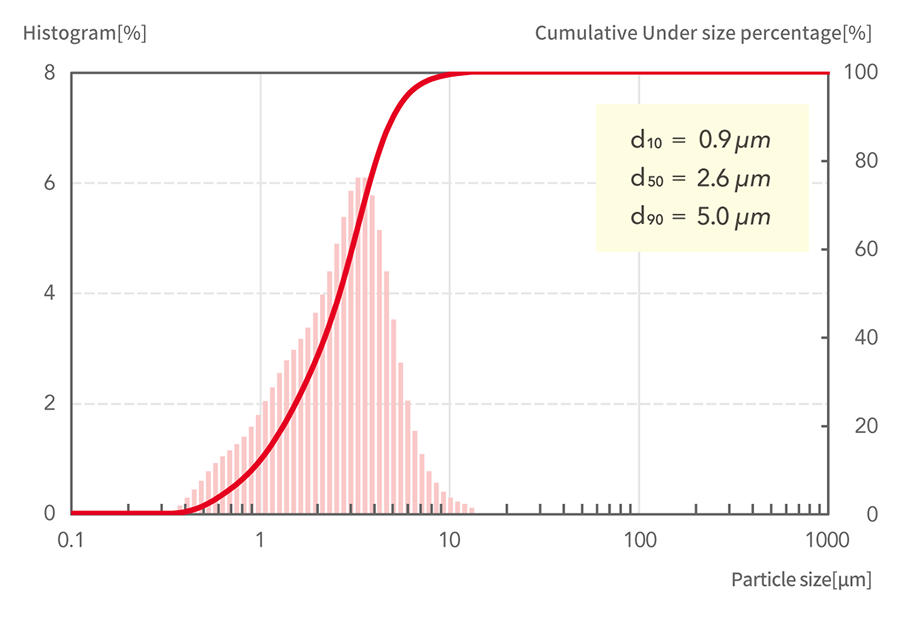

d10=0.9μm, d50=2.6μm, d90=5.0μm

Related Products

Manganese dioxide

Raw material

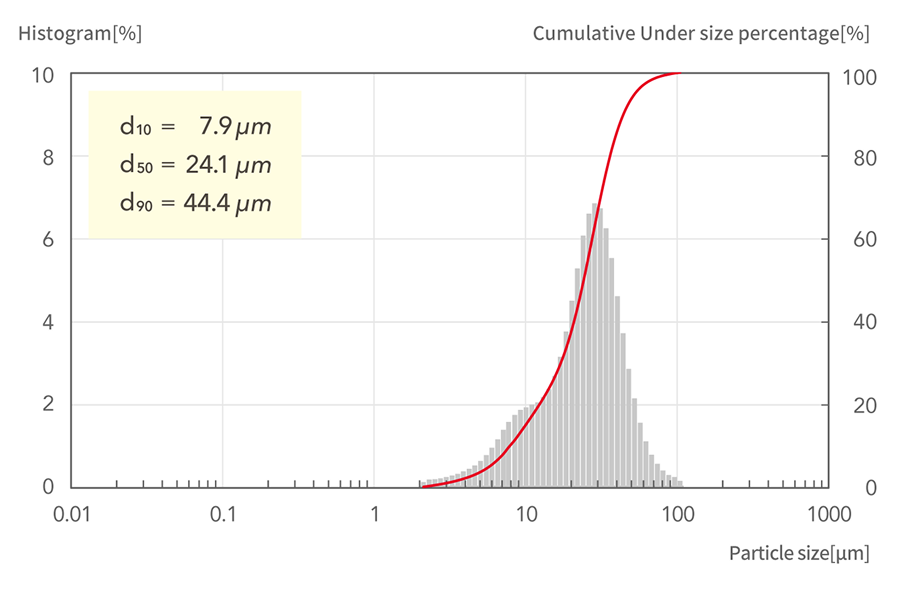

d10=7.9μm, d50=24.1μm, d90=44.4μm

Product

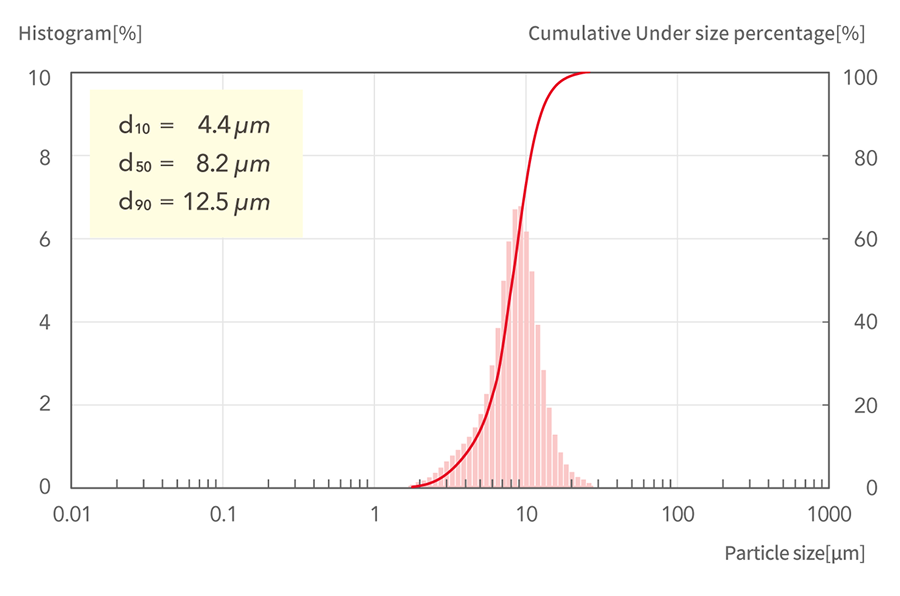

d10=4.4μm, d50=8.2μm, d90=12.5μm

Related Products

Super Jet Mill Turbo Classifier

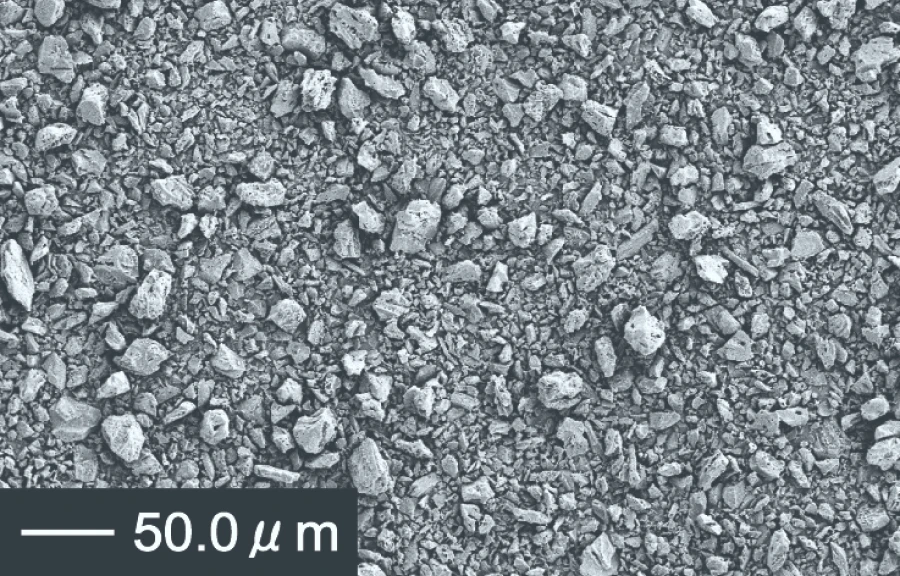

Activated carbon

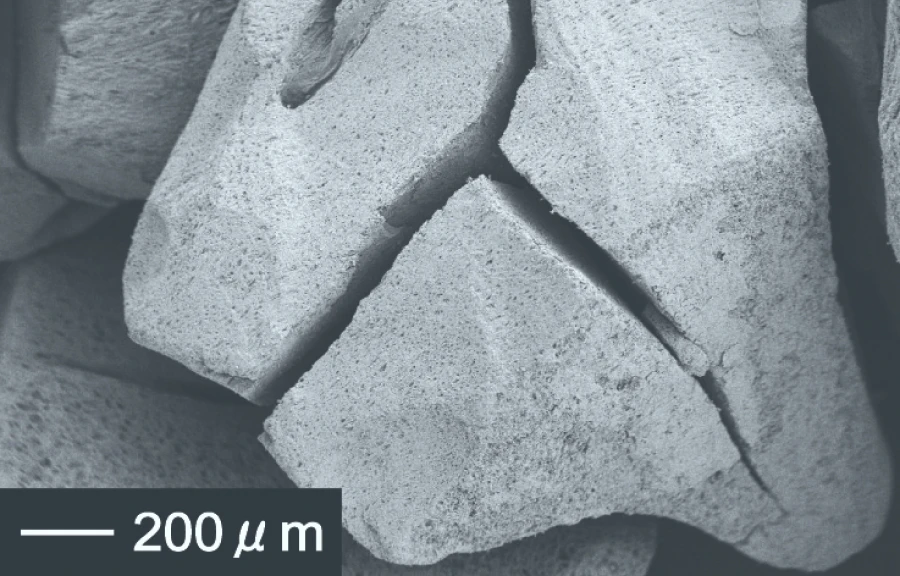

Raw material

Product

Related Products

Graphite

Raw material

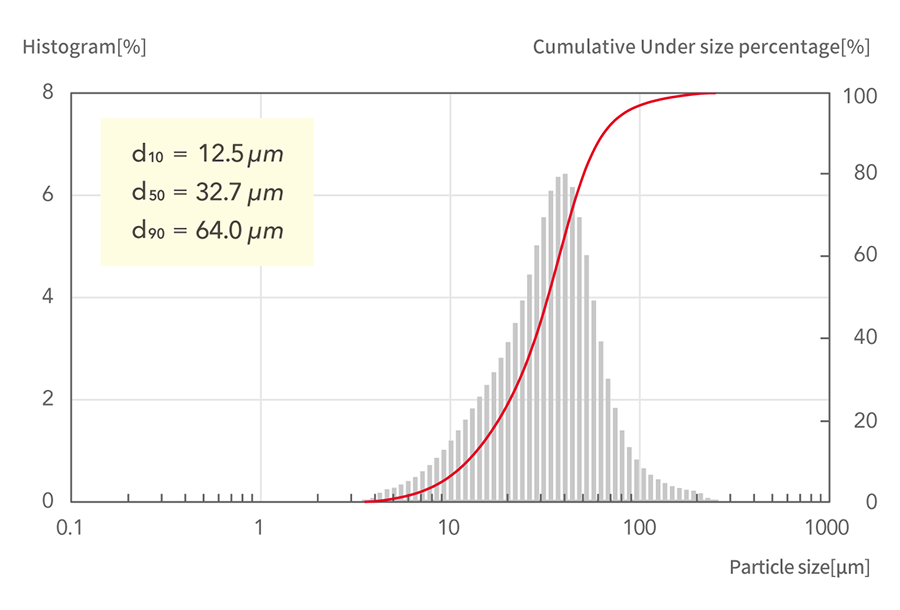

d10=12.5μm, d50=32.7μm, d90=64.0μm

Product

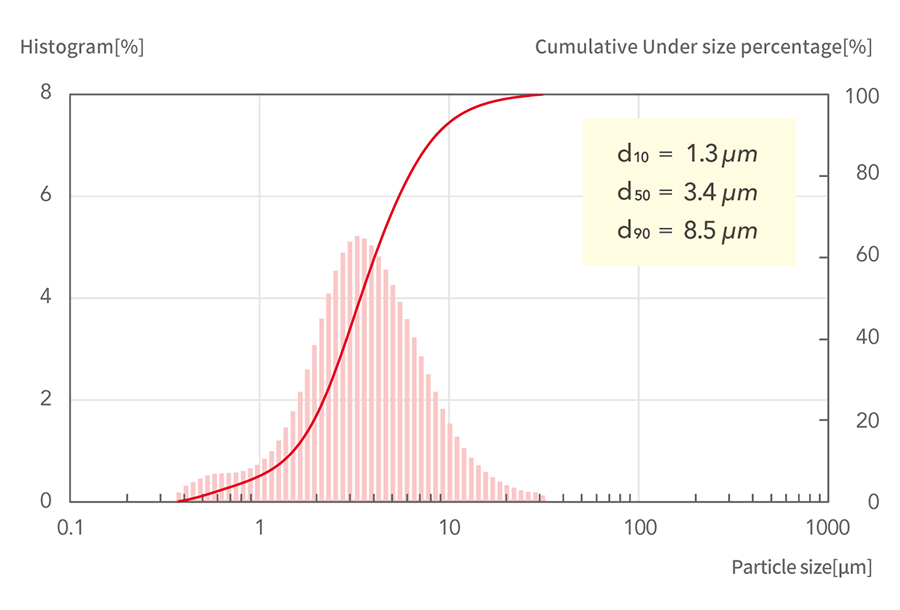

d10=1.3μm, d50=3.4μm, d90=8.5μm

Related Products
